Picture of ACS723LLCTR-20AB-T

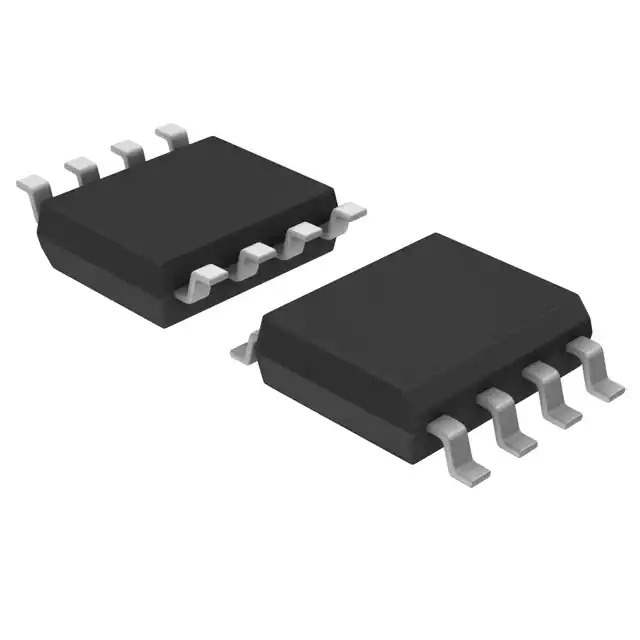

Picture of ACS723LLCTR-20AB-T

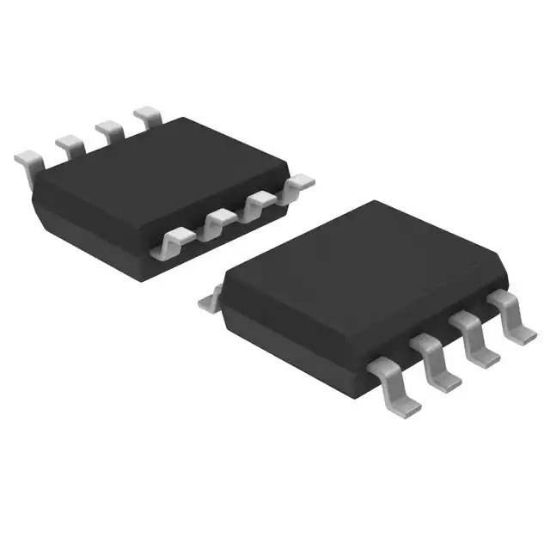

Picture of ACS723LLCTR-20AB-T

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	20A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	100mV/A
Frequency	DC ~ 80kHz
Linearity	±1%
Accuracy	±3%
Voltage - Supply	5V
Response Time	5µs
Current - Supply (Max)	14mA
Operating Temperature	-40°C ~ 150°C
Grade	-
Qualification	-
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

ACS723LLCTR-20AB-T

Availability: In stock

Bulk RFQ

Bulk BID

ACS723LLCTR-20AB-T - 4 verified offers available

Stock	Lead Time	Date Code
18000 pcs	3-7 Days	within 2 years

$

Stock	Lead Time	Date Code
276 pcs	3-7 Days	22+

$

Stock	Lead Time	Date Code
138565 pcs	3-7 Days	23+24+25+

$

Stock	Lead Time	Date Code
32000 pcs	3-7 Days	2321 - 2, 2322 - 7, 2407 - 2

$
