Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	12ns, 12ns
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	2.7V ~ 5.5V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.180", 4.58mm Width)
Supplier Device Package	6-SO Stretched

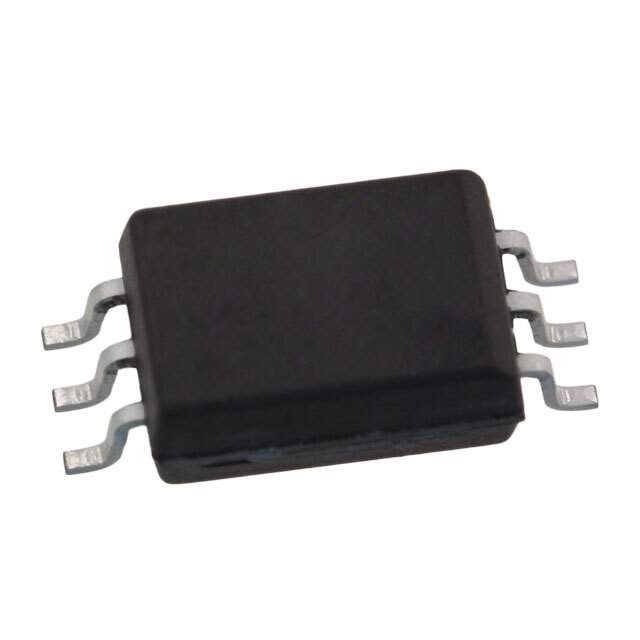

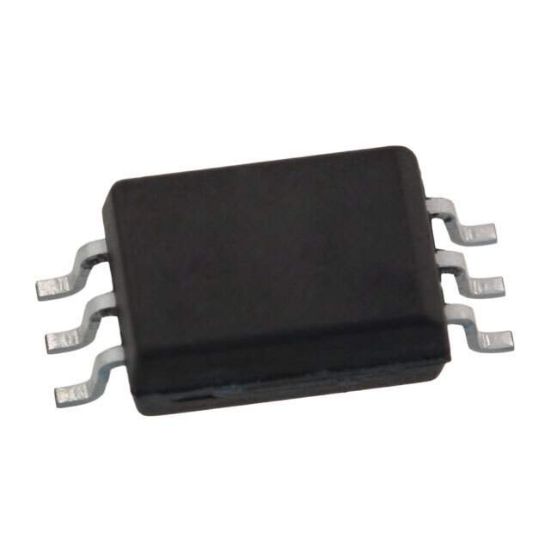

ACPL-W61L-560E

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	NA

Stock	Lead Time	Date Code
10000 pcs	3-7 Days	within 2 years

Stock	Lead Time	Date Code
26 pcs	3-7 Days	06/09/2023 00:00:00

Stock	Lead Time	Date Code
17701 pcs	3-7 Days	15+

Stock	Lead Time	Date Code
26 pcs	3-7 Days	45175

Stock	Lead Time	Date Code
201 pcs	3-7 Days	02/21/2024 00:00:00
