Products specifications

Attribute name	Attribute value
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	2
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Overall Contact Length	0.567" (14.40mm)
Insulation Height	0.118" (3.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	-
Operating Temperature	-25°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	7.5A
Voltage Rating	250VAC

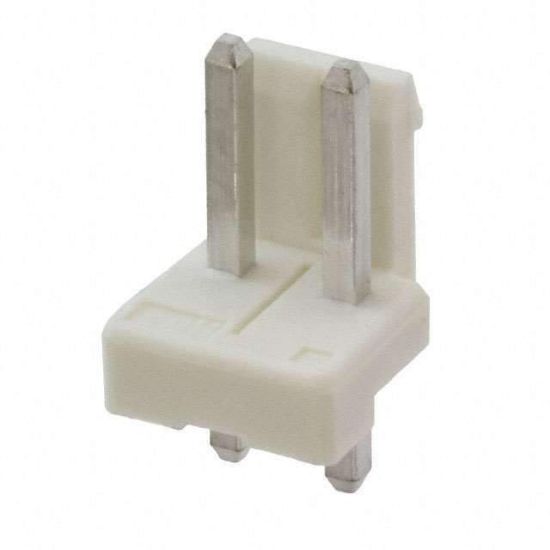

1-1123723-2

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
16569 pcs	3-7 Days	21+

Stock	Lead Time	Date Code
16569 pcs	3-7 Days	21
